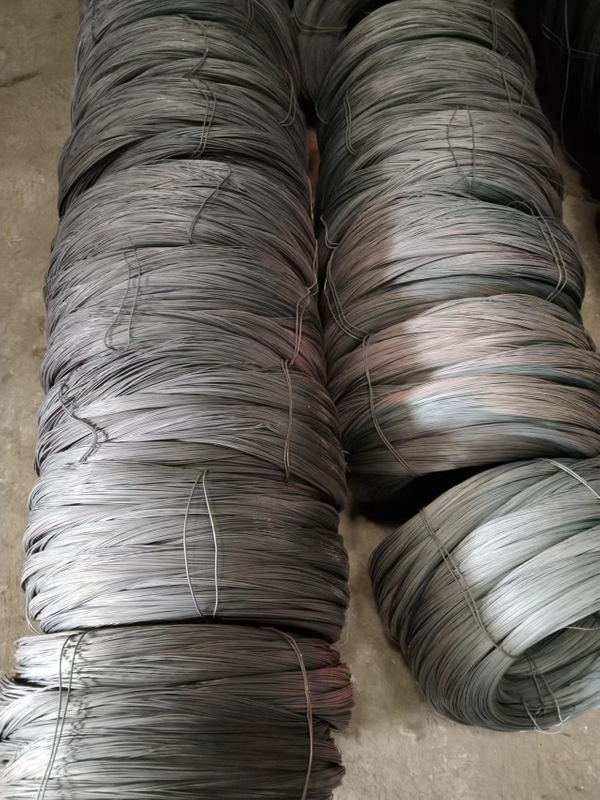

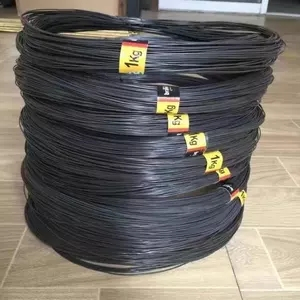

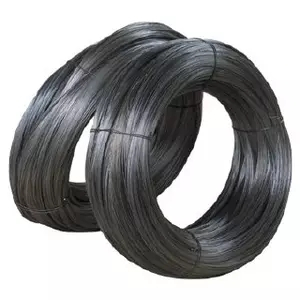

Building Material Binding Wire Black Annealed Wire

Availability:

Quantity:



Inquire Add to Basket

Trademark:
According to Customer Requirements.
Origin:
HeBei, China
Status:
Hard State
Wire Diameter:
According to Customer Requirements.
Color:
Black
Type:
Steel Coil
Transport Package:
Cartons or Sacks
Coil Outside Diameter:
According to Customer Requirements.
Mesh Wire Diameter:
According to Customer Requirements.

1. Material Q195

C≤0.07; S≤0.023; Si≤0.09; Mn≤0.32; P≤0.025.Because This type of wire rod has less Impurities, Q195 is fit for drawing.The diameter is 6.5mm. Generally, Daily output of xinwang is 120 tons.

2. Drawing

There are two kinds of drawing machine: powder drawing and water drawing. powder drawing is fit for junior drawing(6.5mm~4.0mm).One powder drawing machine has 4 tanks and 4 molds. One tank is matched with a mold. Each of them are offered energy by a electromotor . 0.9mm(max)can be "eat" when the wire cross a mold. There are no loss of weight during drawing.

3. Annealing

Anneal is to low the tensile strength of wire. The stove is solid and built with red bricks. The architecture of anneal stove is cuboid . Different thickness of wire require different temperature. Range is from 700°C to 900°C. Output of the anneal stove, the tensile strength is 400N~600N.

Standard coil is10kg ,25kg ,50kg and 100kg .we can coiled with customer's order.

Black Wire Black Iron Wire Black Annealed Wire Binding Wire

Name	Cheap Black Annealed Binding Wire 18/12 Gauge
Material	Q195/Q235
Surface	Annealed or as the order
Weight	As your request
Production QTY	3000Tons/Month
MOQ	25 Tons
	5kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside 25kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside 50kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside
Package

Payment Terms	T/T, L/C
Delivery Time	About 20days after payment

Wire gauge size	SWG(mm)	BWG(mm)	Metric(mm)
8	4.06	4.19	4
9	3.66	3.76	-
10	3.25	3.4	3.5
11	2.95	3.05	3
12	2.64	2.77	2.8
13	2.34	2.41	2.5
14	2.03	2.11	-
15	1.83	1.83	1.8
16	1.63	1.65	1.65
17	1.42	1.47	1.4
18	1.22	1.25	1.2
19	1.02	1.07	1

Name	Cheap Black Annealed Binding Wire 18/12 Gauge
Material	Q195/Q235
Surface	Annealed or as the order
Weight	As your request
Production QTY	3000Tons/Month
MOQ	25 Tons
	5kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside 25kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside 50kgs/roll, pp film inside and hassian cloth outside or pp woven bag outside
Package

Payment Terms	T/T, L/C
Delivery Time	About 20days after payment

Wire gauge size	SWG(mm)	BWG(mm)	Metric(mm)
8	4.06	4.19	4
9	3.66	3.76	-
10	3.25	3.4	3.5
11	2.95	3.05	3
12	2.64	2.77	2.8
13	2.34	2.41	2.5
14	2.03	2.11	-
15	1.83	1.83	1.8
16	1.63	1.65	1.65
17	1.42	1.47	1.4
18	1.22	1.25	1.2
19	1.02	1.07	1
